Using Cruise Control

Use cruise control when you want to maintain travel speed without having to hold the forward travel pedal down. Cruise control operates only for forward travel.

Operate machine in a large, open area to learn how cruise control works.


Engaging Cruise Control

  1. Depress forward travel pedal until you reach desired travel speed.

  2. MXAL41836
    MXAL41836-UN-18FEB13

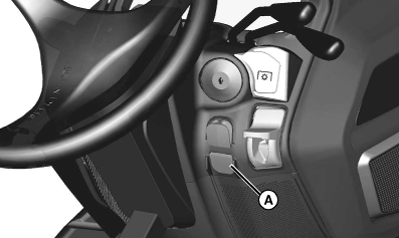

    Push bottom of cruise control latch (A) to engage.


  3. Remove foot from forward travel pedal.

  4. Release cruise control latch.


Disengaging Cruise Control

Depress forward travel pedal or depress brake pedal.

OUO2004,0000435-19-20130816
