Using the PTO (Power-Take-Off)

NOTE: Any operating attachment should stop as the reverse travel pedal or brake pedal is depressed with attachment engaged. Prior to operating the PTO, see Using Reverse Implement Option (RIO) in this section.

This machine is equipped with a 2000 rpm mid PTO.

Always operate engine at maximum speed when PTO is engaged.


Engaging PTO

  1. Reduce travel speed or stop machine.

  2. After engine has warmed, move throttle lever up to maximum engine speed.

  3. MXAL41845
    MXAL41845-UN-18FEB13

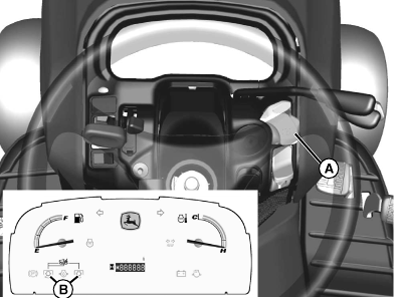

    Pull PTO/RIO switch (A) up. Instrument panel PTO indicator light(s) (B) will come on when PTO is engaged.



Disengaging PTO

NOTE: If reverse travel pedal or brake pedal is depressed, PTO will disengage.

Push PTO/RIO switch down to disengage PTO. Instrument panel PTO indicator light(s) will go out.
