Moving Machine by Hand

CAUTION: When the bypass valve is open, the machine will have unrestricted motion.

  • Do not open the bypass valve when the machine is stopped on an incline to prevent it from going downhill out of control.

IMPORTANT: Transmission damage may occur if the machine is towed or moved incorrectly:

  • Move machine by hand only.
  • Do not use another vehicle to move machine.
  • Do not tow machine.

When you need to move the machine without starting the engine, use the bypass valve lever:

  1. Stop engine.

  2. MXAL41846
    MXAL41846-UN-18FEB13

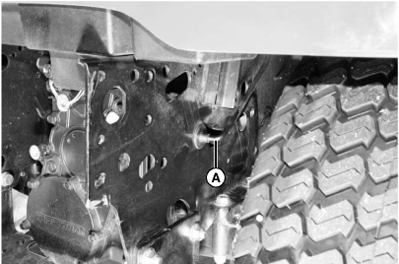

    Pull bypass valve control lever (A) fully up to open the bypass valve.


  3. Unlock park brake.

  4. Push machine to desired location.

  5. Push down bypass lever.

OUO2004,000043F-19-20130816
