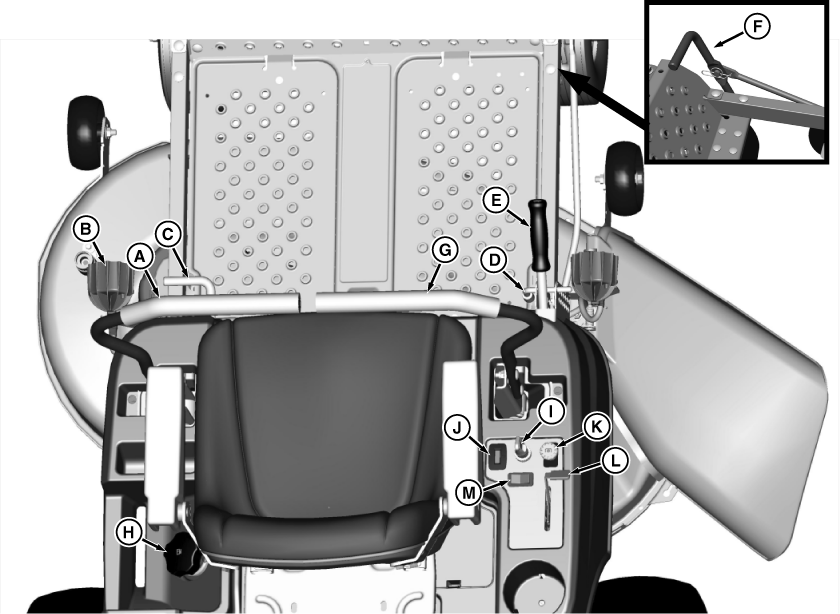

Operator Station Controls

MXT005329-UN-07JUL13

A - Left Motion Control Lever

B - Headlight (If equipped)

C - Park Brake Lever

D - Deck Height Pin

E - Mower Deck Lift Lever

F - Mower Deck Lift Pedal (If Equipped)

G - Right Motion Control Lever

H - Fuel Tank Cap

I - Ignition Key Switch

J - Hourmeter

K - Mower Engagement Switch

L - Throttle/Choke Control Lever

M - Optional Kits Switch
