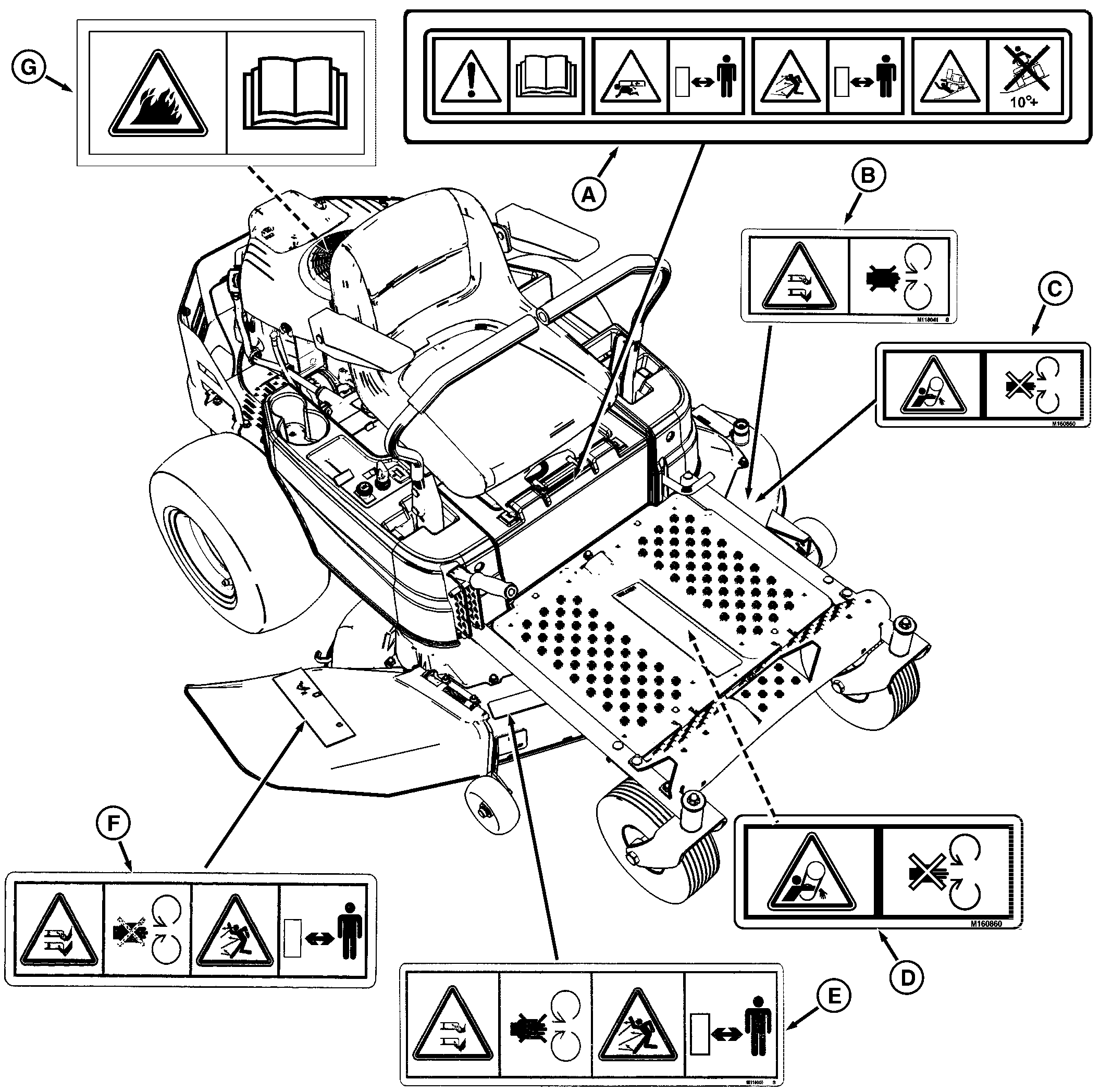

Pictorial Safety Label Location

MXT005338-UN-13JUN13

Use label number listed in table below to order replacement labels. Locate complete text of safety label message following this illustration.

A - Read Operator’s Manual, Keep Children Away From Mower, Avoid Injury From Thrown Objects, Avoid Injury From Tipping - M162849

B - Avoid Injury From Rotating Blades - M118041

C - Avoid Injury From Getting Caught in Belts - M136436

D - Avoid Injury From Getting Caught in Belts - M160860

E - Avoid Injury From Rotating Blades, Avoid Injury From Thrown Objects - M138631

F - Avoid Injury From Rotating Blades, Avoid Injury From Thrown Objects - M118040

G - Prevent Equipment Fires - M165708
