Lubricating Mower Deck Spindles

NOTE: Removal of belt shields is not necessary to lubricate the spindles.

  1. Remove floor mat (if equipped) and mower deck foot plate.

  2. MXAL42821
    MXAL42821-UN-25MAR13

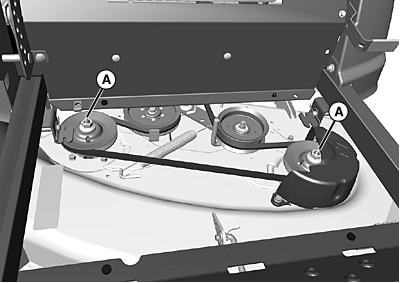

    Lubricate two mower deck spindle grease fittings (A) with two pumps of grease at specified interval.

MX00654,0000044-19-20130801
