Lubricating Machine Grease Fittings (4WD Models)

MXAL42712
MXAL42712-UN-22MAR13

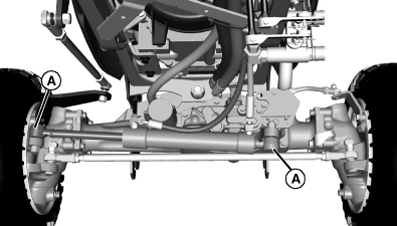

View from rear of machine

  • Lubricate grease fittings at both steering cylinder ends (A).

MXAL42713
MXAL42713-UN-22MAR13

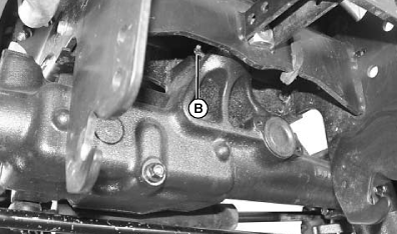

  • Lubricate grease fittings at the front axle center pivot (B).

MXAL42714
MXAL42714-UN-22MAR13

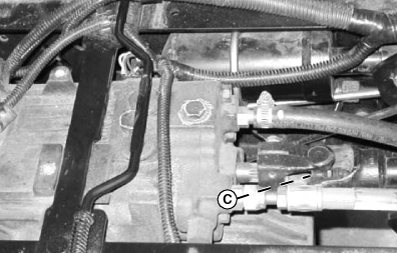

Showing view under fuel tank

  • Lubricate grease fitting (C) on the engine drive shaft universal joint.
