Replacing Taillight Bulb

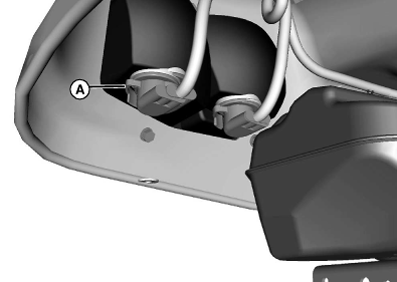

  1. MXAL42755
    MXAL42755-UN-25MAR13

    Depress tab (A) and turn bulb assembly counterclockwise 1/4 turn to release.



  2. Remove bulb assembly from housing.

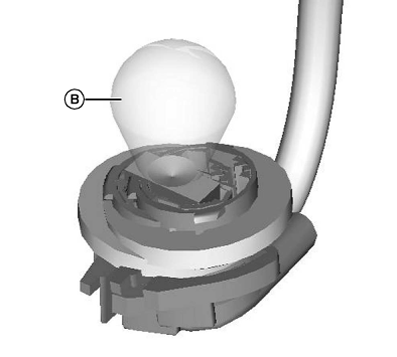

  3. MXAL42756
    MXAL42756-UN-25MAR13

    Remove bulb (B) from socket.



  4. Replace bulb.

  5. Insert bulb assembly into housing.

OUO1082,0006681-19-20130327
