Install Seat (Standard Models)

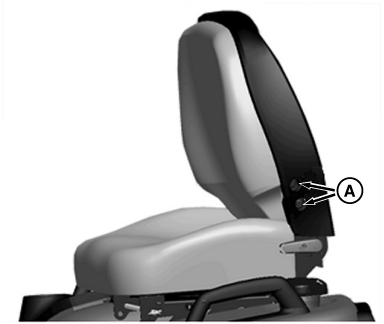

MXT004195
MXT004195-UN-12JUL12

A - Bolts (4)

  1. NOTE: Do not cut white tie strap on right pivot bracket. This needs to stay in place throughout setup.

    Remove bag of parts (two bolts and four caps).

  2. Remove backrest cushion from left footrest mat and slide left and right frame tubes into grooves of left and right pivot bracket.

    NOTE: Ensure coil spring is engaged on inside of right pivot bracket before proceeding.

  3. Install four bolts (A) thru backrest shroud holes into seat frame, two on left side and two on right side. Tighten to 23 N·m (17 lb.-ft.).

  4. Pull recline handle up and adjust backrest into operating position. Release handle.

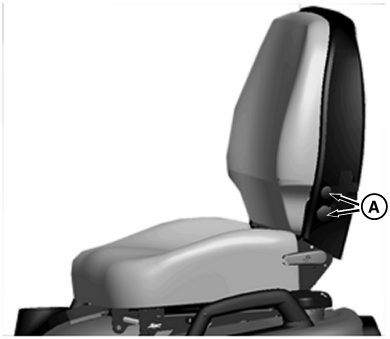

  5. MXT004196
    MXT004196-UN-12JUL12

    A - Plastic Caps

    Press four plastic caps (A) into back shroud holes, two on left side and two on right side.


  6. Cut white tie strap on right pivot bracket.

OUO2004,0000636-19-20130923
