Replacing Fuses and Relays (X730, X734, X738, X739)

Locate Fuses and Relays

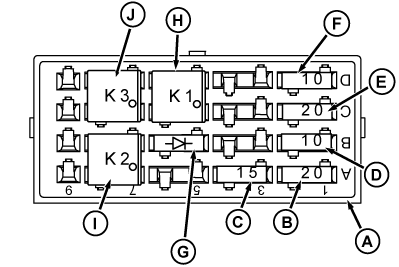

MXT013403-UN-08JAN15

Load Center

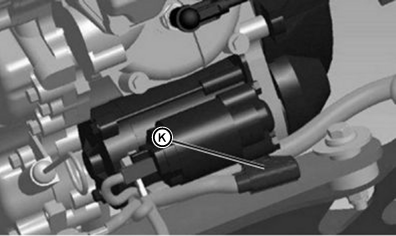

MXT013414-UN-14JAN15

30 Amp Master Fuse

A - Fuse Block

B - Unswitched Power to Key Switch

C - Power Port

D - Lights

E - Switched Power

F - Unswitched Power to EFI K1 Relay

G - PTO Clutch Diode

H - EFI K1 Relay

I - Fuel Pump Relay

J - Safety Relay

K - 30 Amp Master Fuse

Remove and Check Fuses

1. Pull fuse from socket.

2.

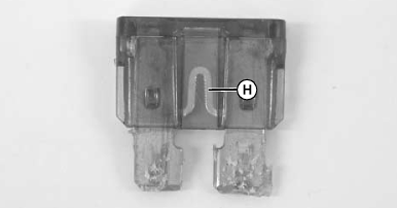

   MXAL42759-UN-25MAR13

   Fuses may look slightly different than shown

   Check metal clip (H) in fuse window. Discard fuse if clip is broken.

---




3. Install fuse.
