Replacing Fuses and Relays (X710)

Locate Fuses and Relays

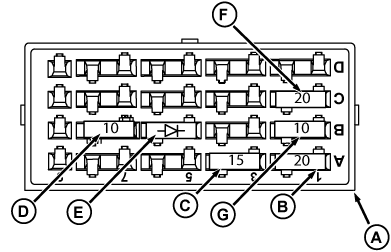

MXT013412-UN-13JAN15

Load Center

MXT013413-UN-13JAN15

30 Amp Master Fuse

A - Fuse Block

B - Unswitched Power to Key Switch

C - Power Port

D - Fuel Pump

E - Diode

F - Switched Power

G - Lights

H - 30 Amp Master Fuse

Remove and Check Fuses

1. Pull fuse from socket.

2.
   MXAL42759-UN-25MAR13

   Fuses may look slightly different than shown

   Check metal clip (H) in fuse window. Discard fuse if clip is broken.

---




3. Install fuse.
