Identify Parts

44 and 47 Inch Snowblower Parts

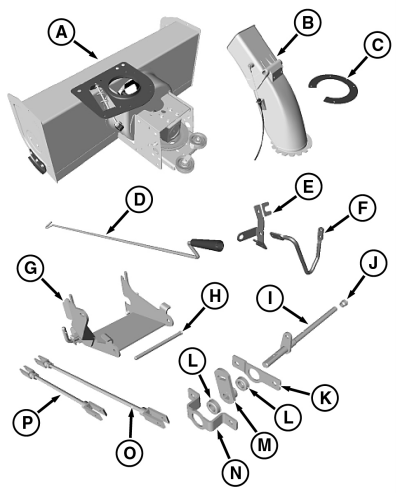

MXT007259-UN-29MAY13

Quantity	Description
1	Snowblower Assembly (A)
1	Chute Assembly (Includes Spout and Cable) (B)
1	Chute Retaining Bracket (C)
1	Chute Handle Rod (Includes Handle) (D)
1	Chute and Spout Bracket (E)
1	Rotation Handle Bracket (F)
1	Front Attachment Hitch (G)
1	Front Draft Pin (H)
1	Rockshaft (I)
1	Bushing (J)
1	Rockshaft Support Bracket (K)
2	Bearing (L)
1	Rockshaft Bracket (M)
1	Mounting Plate (N)
1	Lift Rod, Outer (Long) (O)
1	Lift Rod, Inner (Short) (P)
2	Reflective Tape (44 in. only)

44 and 47 Inch Snowblower Hardware

Quantity	Description
3	Bolt, Carriage, M8 x 20
1	Bolt, Flange Head, M6 x 16
2	Bolt, Flange Head, M10 x 30 (Two Pieces Used on X300R and X305R Models With 44 in. Snowblower; One Piece Used on 47 in. Snowblowers)
4	Bolt, Flange Head, M6 x 45
4	Screw, Self-Tapping, M8 x 20
1	Screw, Pan Head, M5
1	Nut, M5
5	Nut, M6
2	Nut, M8
1	Washer, M10 x 340D x 3W (Used on 44 in. Snowblower and X300R /X305R Models)
2	Nut, Flange, M10 (Two Pieces Used on 44 in. Snowblower and X300R/X305R Models; One Piece Used on 47 in. Snowblowers)
1	Lockwasher, 3/8 in.
1	Washer, M8.4
1	Washer, M10.5
1	Clamp
4	Spacer, Chute Retaining Bracket
1	Spring Locking Pin, M2.5
1	Spring Locking Pin, M4.5
4	Locking Ring
1	Clevis Pin, M6 x 40
4	Drilled Pin, M10 x 28
1	Cotter Pin, M2.5 x 16
1	Cotter Pin, M2.5 x 20
1	Cotter Pin, M3.2 x 32
1	Bearing, Snap-In
1	Knob
