Replacing Drive Belt

MXT007376-UN-29MAY13

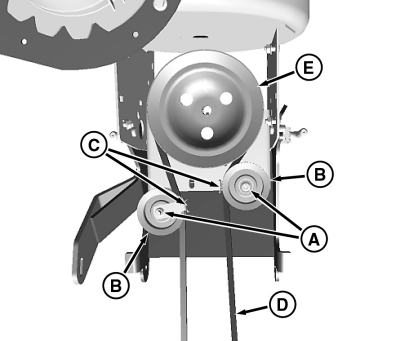

Picture Note: Top view - Gearbox removed for clarity.

A - Nut

B - Idlers

C - Belt Guide

D - Belt

E - Snowblower Drive Sheave

1. Raise snowblower and temporarily block up to support.

2. Remove drive belt from machine drive sheave.

3. Remove block and lower snowblower.

4. Loosen nuts (A) on idlers (B) to loosen belt guides (C).

5. Remove belt (D) from snowblower drive sheave (E).

6. Remove belt from idlers.

7. Remove old belt.

8. Install new belt:

   • Install belt on snowblower drive sheave (E), from below, with V-shaped side of belt in groove of sheave.
   • Route belt to inside of idlers (B), with flat side of belt against idlers.
   • Position belt guides (C) close to, but not touching, belt. Tighten nuts (A).
   • Make sure belt is free of twists.



9. Raise and block up snowblower.

10. IMPORTANT: Avoid damage! Check position of belt guides after installing attachment on machine. Guides must not touch belt.

    Install belt on machine drive sheave.

11. Remove block and lower snowblower.
