Cleaning Mower Deck

1. NOTE: Follow this procedure after each use to prevent buildup and remove corrosive lawn chemicals.

   Park machine safely. (See Parking Safely in the SAFETY section.)

2. Push top hydraulic lever forward to lower deck to the ground.

3.
   MXT009306-UN-21SEP13

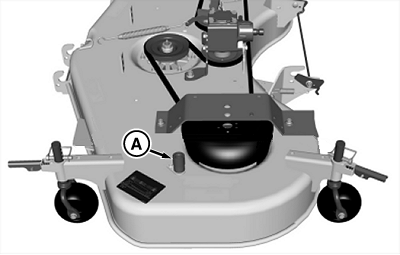

   Attach a garden hose with quick-coupler to cleanout port (A) on left side of mower deck.

---




4. Turn on water for hose.

5. Start engine.

6. Push throttle lever to full throttle position. Engage mower deck and allow water to flush under deck for one minute.

7. Shut off mower deck and stop engine.

8. Turn off water and remove garden hose from cleanout port.
