Operator Station Controls

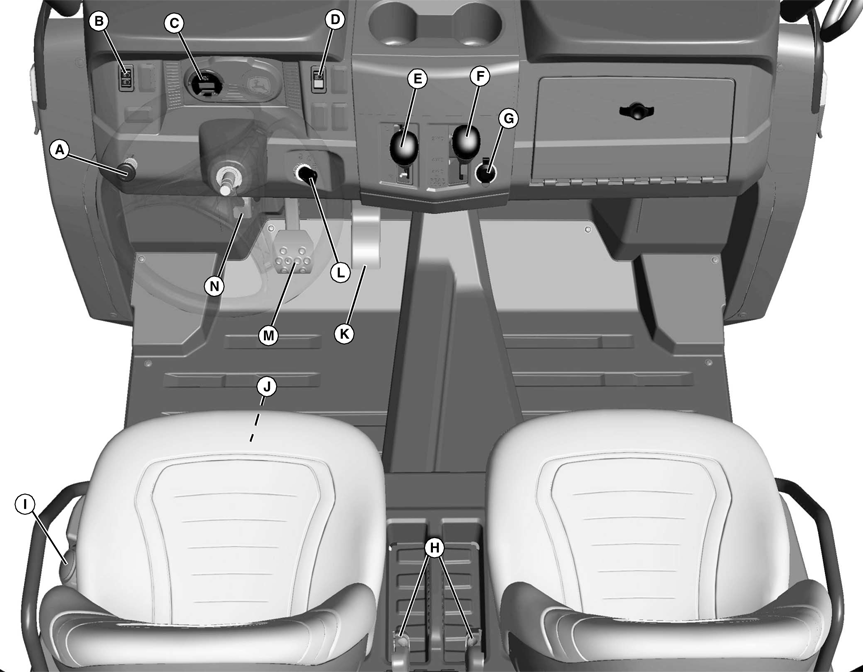

MXAL47297-UN-16APR13

Some controls may not be installed on your machine.

Key	Description	Key	Description
A	Choke	H	Seat Belt
B	Cargo Box Power Lift Switch	I	Fuel Tank Cap
C	Hourmeter / Service Reminder	J	Fuel Gauge (under seat)
D	Headlight Switch	K	Accelerator Pedal
E	Transaxle Shift Lever	L	Ignition Key Switch
F	Wheel Drive / Rear Lock Lever	M	Brake Pedal
G	12V DC Accessory Outlet	N	Park Brake Pedal
