Using Hand Holds

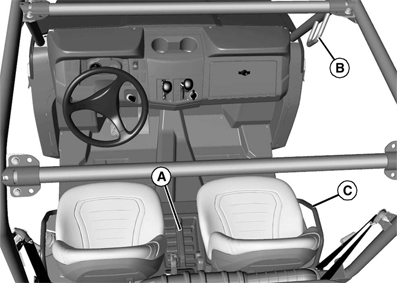

Machines with Bucket Seats

MXAL47298-UN-16APR13

Hand holds are provided for passenger balance. When a passenger is present, they shall use two of the three hand holds at all times while the machine is moving: The center handle (A), Occupant Protective Structure (OPS) handle (B), and side rail (C).

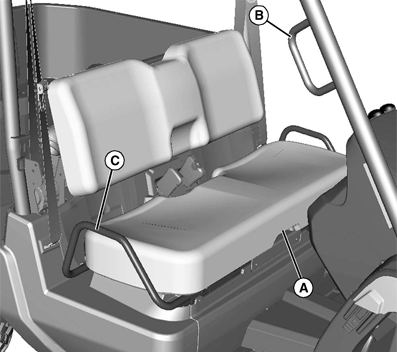

Machines with Bench Seat

MXAL47299-UN-16APR13

Hand holds are provided for passenger balance. When a passenger is present, they shall use two of the three hand holds at all times while the machine is moving: The center hand grip (A), Occupant Protective Structure (OPS) handle (B), and side rail (C).
