Adjusting Bucket Seat

1. Tilt seat forward.

2.
   MXAL47300-UN-16APR13

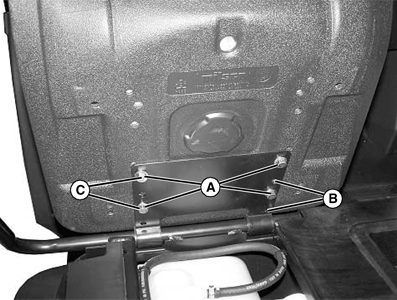

   Rear position shown.

   Remove cap screws (A).

---




3. Slide seat to the forward (B) or rearward (C) position.

4. Position bottom of seat against bracket and align correct holes with holes in seat.

5. Install original hardware and tighten to specification.

   Item	Measurement	Specification
   Bucket Seat Cap Screw	Torque	12 N·m (108 lb-in.)
