Using Instrument Panel

MXAL47305-UN-16APR13

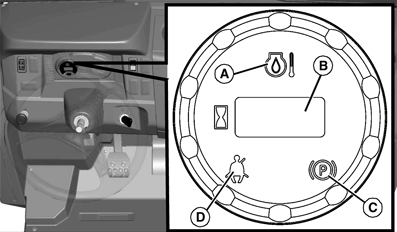

A - Engine Oil Temperature Light (Optional Kit) - This light will illuminate when the ignition key switch is in the RUN position and the engine is not running. If this light turns on while the engine is running, engine oil temperature is too high. Stop engine. See Prevent Fires block in MACHINE CLEANOUT to clean all machine areas, or determine cause by using your machine Technical Manual.

B - Hourmeter - The hourmeter shows the accumulated number of hours the engine has run. The hourmeter displays hours with the ignition key switch in the RUN position, and accumulates and displays hours when the engine is running. The hourmeter is intended to provide a means of monitoring machine usage for maintenance purposes. Use the hourmeter to determine when your machine has reached the recommended service intervals.

C - Park Brake Light - This light will illuminate when the ignition key switch is in the RUN position and the park brake is partially or fully engaged into the locked position.

D - Seat Belt Indicator Light - This light will illuminate if the seat belt is not adequately secured.
