Occupant Protective Structure (OPS) Rear Screen


Adjusting Headrest Position

MXAL47328
MXAL47328-UN-16APR13

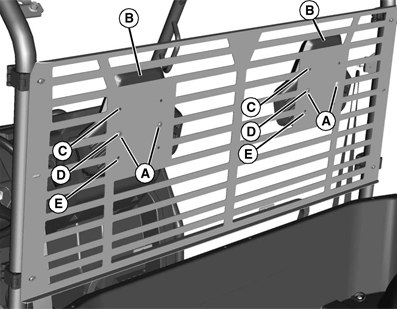

Headrest shown in center position.

  1. Remove two screws (A) and move each headrest (B) to either top (C), center (D) or bottom (E) position. Secure with two screws.

BB87125,0000D77-19-20130419
