Lubricating Drive Line

  1. Park the machine safely. (See Parking Safely in SAFETY.)

  2. MXAL47333
    MXAL47333-UN-16APR13

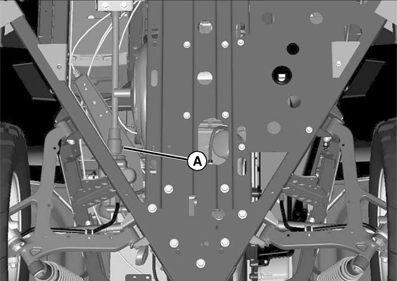

    Viewed from under the machine.

    Lubricate grease fitting (A) on rear drive line with one or two shots of grease.
