Lubricating Suspension

1. Park the machine safely. (See Parking Safely in SAFETY.)

2.

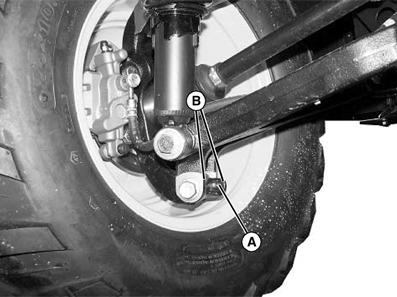

   MXAL47334-UN-16APR13

   Using a grease gun, apply grease to rear control arm through the grease fittings (A) until grease become visible at joint interface (B). Repeat on opposite side of machine.

---




3. Remove exposed grease from joint after applying grease.
