Checking 4WD Front Differential Oil Level

1. Park the machine safely. (See Parking Safely in SAFETY.)

2. Allow machine to cool down for at least one hour.

3. IMPORTANT: Dirt and debris in oil may cause damage to the 4WD differential. Clean area around opening before removing plug.


   MXAL47353-UN-16APR13

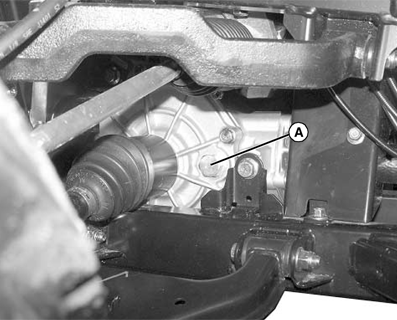

   Fill plug under left front side.

   Remove fill plug (A) located on left side of 4WD front differential.

---




4. Oil should be level with the bottom of the fill port. If oil level is low:

   1. Add oil through fill port until level is correct.

   2. Install and tighten fill plug to specification.

      Item	Measurement	Specification
      Front Differential Fill Plug	Torque	45-54 N·m (33-40 lb-ft)
