Servicing Drive Belt

Checking Drive Belt

CAUTION: Rotating parts can catch fingers, loose clothing, or long hair. Wait for engine and all moving parts to stop before leaving operator’s station to adjust or service machine.

1. Park the machine safely. (See Parking Safely in SAFETY.)

2. NOTE: Drive belt can be inspected through enclosure exhaust port (A) without removing clutch enclosure cover.

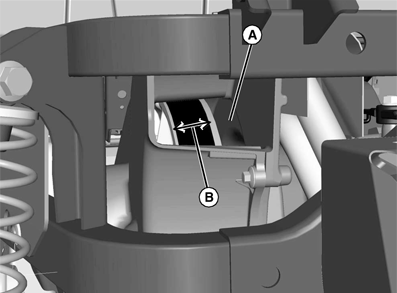

   MXAL47361-UN-16APR13

   Measure the top surface of the belt width at (B). Verify belt width meets minimum width specification.

   Item	Measurement	Specification
   Drive Belt Top Surface Minimum	Width	29 mm (1.1 in.)

---




3. Check inside enclosure exhaust port (A) for debris.

4. If debris is found inside exhaust port, remove the cargo box.

5.

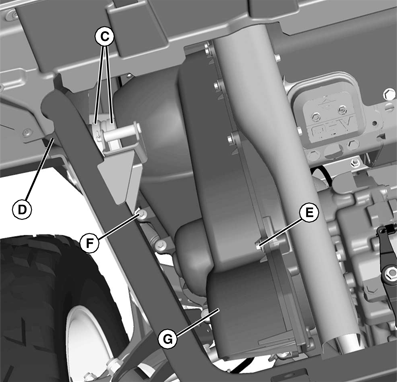

   MXAL47362-UN-16APR13

   Loosen clamps (C) and remove air inlet hose (D).

---




6. NOTE: Note what hole each bolt came from when removing clutch enclosure cover.

   Remove seven horizontally installed bolts (E) and eight vertically installed bolts (F) and outer clutch enclosure cover (G).

7.

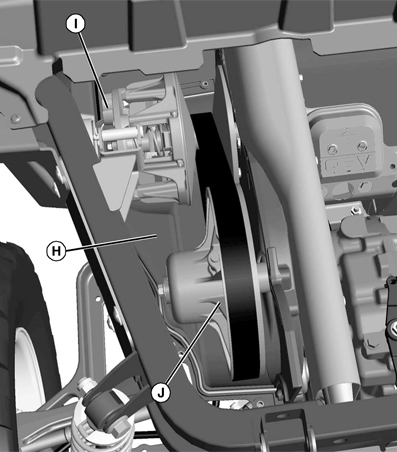

   MXAL47363-UN-16APR13

   Clean inside clutch enclosure cover, clutch enclosure base (H), and around drive (I) and driven clutch (J) assemblies.

---




8. Rotate and inspect drive belt for wear or damage.

9. Replace belt if needed

10. Install outer clutch enclosure cover, and secure with seven horizontal bolts and eight vertical bolts.

11. Install air inlet hose and secure with hose clamps.

12. Install cargo box.

Replacing Drive Belt

CAUTION: Rotating parts can catch fingers, loose clothing, or long hair. Wait for engine and all moving parts to stop before leaving operator’s station to adjust or service machine.

1. Park the machine safely. (See Parking Safely in SAFETY.)

2. Remove cargo box.

3. Remove clutch enclosure cover. (See Checking Drive Belt.)

4.

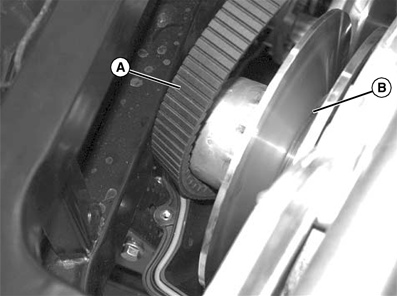

   MXAL47364-UN-16APR13

   Remove drive belt (A) from driven pulley (B).

---




5.

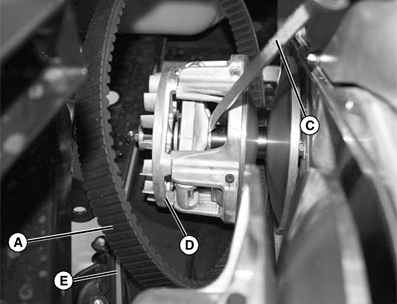

   MXAL47365-UN-16APR13

   Using a screwdriver (C) or pry bar, as shown, pry clutch so that belt (A) can clear clutch fan (D) and housing (E) and be removed.

---




6. Remove belt.

7. Install belt, reverse order of removal.

8. Install outer clutch enclosure cover and air inlet hose. (See Checking Drive Belt.)

9. Install cargo box.
