Cleaning Primary Drive Clutch/Fan

IMPORTANT: Never lubricate any part of the primary drive clutch.

  1. Park the machine safely. (See Parking Safely in SAFETY.)

  2. Allow engine to cool.

  3. Tilt seats forward.

  4. Raise and secure cargo box with latch support.

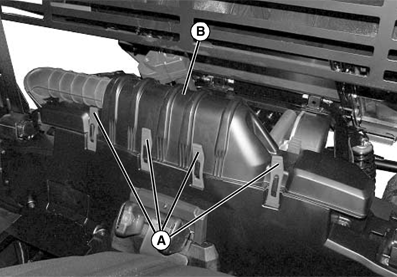

  5. MXAL47366
    MXAL47366-UN-16APR13

    Remove four rubber latch straps (A) on each side of air intake cover (B). Remove cover (B).

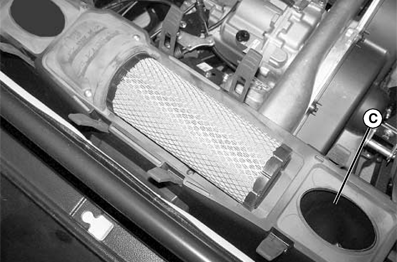

  6. MXAL47367
    MXAL47367-UN-16APR13

    Clean any debris from inlet (C).

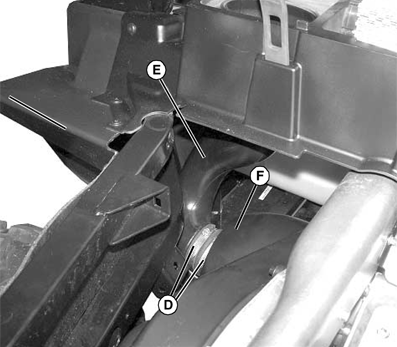

  7. MXAL47368
    MXAL47368-UN-16APR13

    Under left side of machine, loosen two hose clamps (D) and pull air intake hose (E) off of outer clutch cover (F).


  8. Through access hole (where air intake hose was removed), use compressed air to blow dust and debris out of clutch fan area.

  9. Install hose back onto outer clutch cover with clamps.

  10. Install air intake cover back onto air intake and secure with eight rubber straps.

  11. Lower the cargo box.

  12. Lower seats.

BB87125,0000D9C-19-20130419
