Checking Rear Lock Engagement

1. Park the machine safely. (See Parking Safely in SAFETY.)

2. Allow engine to cool.

3. Raise and secure cargo box with latch support.

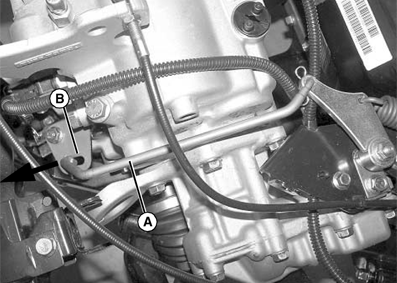

   MXAL47369-UN-16APR13

   2WD position shown.

---




4.
   MXAL47370-UN-16APR13

   4WD position shown.

   Check rear lock engagement:
   • When 2WD / 4WD lever is in 2WD position, engagement rod (A) should be in rear most position of slotted hole (B) on transaxle bracket.
   • When 2WD / 4WD lever is in 4WD position, engagement rod (A) should be in forward most position of slotted hole (B) on transaxle bracket.



---




5. If position is not as noted above, see your John Deere Dealer for service.
