Checking and Replacing Fuses

IMPORTANT: The electrical system may be damaged if incorrect replacement fuses are used. Replace the bad fuse with a fuse of the same amp rating.

  1. Park the machine safely. (See Parking Safely in SAFETY.)

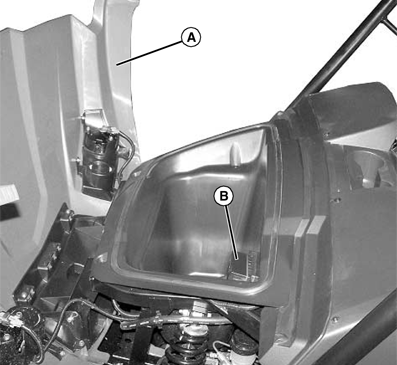

  2. MXAL47381
    MXAL47381-UN-16APR13

    Open hood (A) to access the storage tray.


  3. Remove fuse box cover (B).

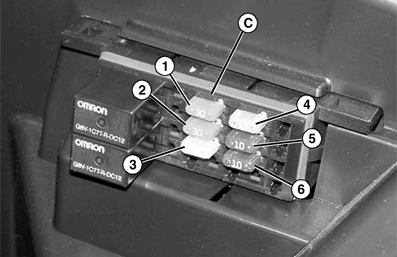

  4. MXAL47382
    MXAL47382-UN-16APR13

    Pull fuse from relay block (C) under storage tray.


  5. Fuse identification:

    Position

    Circuit

    Fuse Size

    1

    Front Accessory

    30 amp

    2

    Rear Accessory

    30 amp

    3

    Starter Solenoid

    20 amp

    4

    Key Switch (Keyed Power)

    15 amp

    5

    Power Port

    10 amp

    6

    Headlights

    10 amp

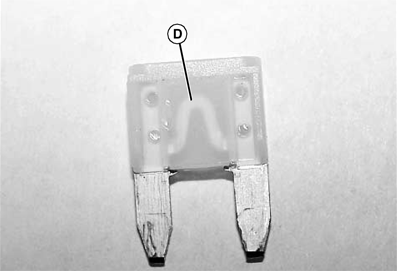

  6. MXAL47383
    MXAL47383-UN-16APR13

    Check visually for broken filament at location (D) in fuse.


  7. Push new fuse of correct amp rating into proper position in fuse block.

  8. Install fuse box cover and close hood.

BB87125,0000DA9-19-20130508
