Removing and Installing Cargo Box


Removing Cargo Box

CAUTION: Do not attempt removal of the cargo box without using the latch support.

Empty all material from the cargo box before removing.

  1. Empty the cargo box.

  2. Park the machine safely. (See Parking Safely in SAFETY.)

  3. On machines with a power cargo box lift, disconnect power lift:

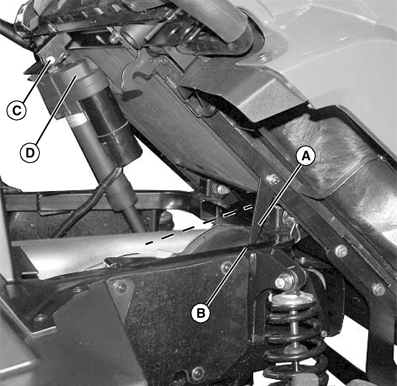

    MXAL47391
    MXAL47391-UN-16APR13

    1. Fully raise cargo box, and lower latch support (A) downward.

    2. Lower cargo box with latch support onto frame (B).

    3. Remove top spring locking pin and cylinder pin (C), and lower top of lift cylinder (D) downward.

    4. Install cylinder pin and spring locking pin back into the lift cylinder for storage.

    5. Raise latch support and fully lower cargo box.


  4. CAUTION: Machine component or attachment is heavy. Use a safe lifting device or get an assistant to help lift, install or remove component or attachment.

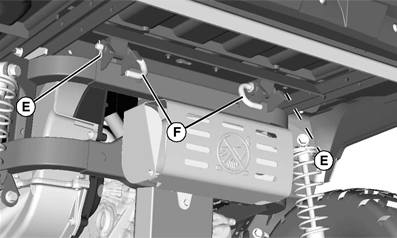

    MXAL47392
    MXAL47392-UN-16APR13

    Remove spring locking pins (E) and J-shaped pins (F), and remove cargo box from machine.


  5. Install J-shaped pins and spring locking pins back into machine brackets for storage.


Installing Cargo Box

  1. Remove spring locking pins (E) and J-shaped pins (F) stored in brackets at the rear of the machine.

  2. CAUTION: Machine component or attachment is heavy. Use a safe lifting device or get an assistant to help lift, install or remove component or attachment.

    Carefully position cargo box on top of machine frame with a safe lifting device.

  3. NOTE: To be certain J-shaped pins do not rotate, install behind machine frame as shown below.

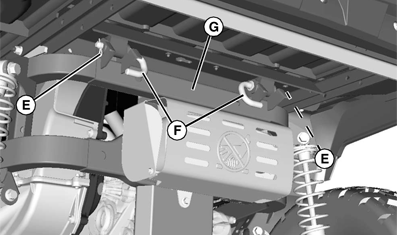

    MXAL47393
    MXAL47393-UN-16APR13

    Align cargo box tabs and brackets at the rear of the machine, and secure rear of cargo box to the frame with J-shaped pins (F) behind machine frame (G). Secure with spring locking pins (E).


  4. CAUTION: Make sure cargo box is safely supported in the raised position before connecting the lift cylinder to the bottom of the cargo box.

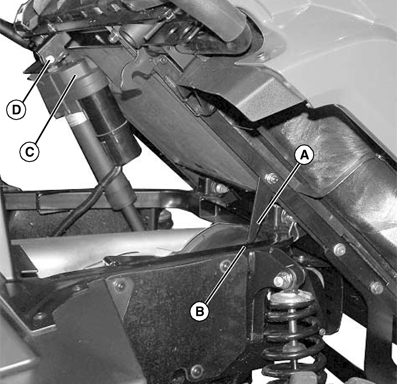

    MXAL47394
    MXAL47394-UN-16APR13

    On machines with a power cargo box lift, connect power lift:

    1. Fully raise cargo box and lower latch support (A) downward.

    2. Lower cargo box with latch support onto frame (B).

    3. Remove spring locking pin and cylinder pin stored in the lift cylinder.

    4. Install top of lift cylinder (C) to bracket on cargo box and secure with cylinder pin (D) and spring locking pin.

    5. Raise latch support and fully lower cargo box.

BB87125,0000DB1-19-20130508
