Using Nets

CAUTION: Do not operate vehicle with nets removed. Always park vehicle safely before opening net to exit.

Do not operate vehicle with nets or doors in the open position. All nets or doors should be closed while the vehicle is in use.

Entering vehicle:

1. Move net rearward out of entry and exit area, and enter vehicle.

2.
   MXT009405-UN-04OCT13

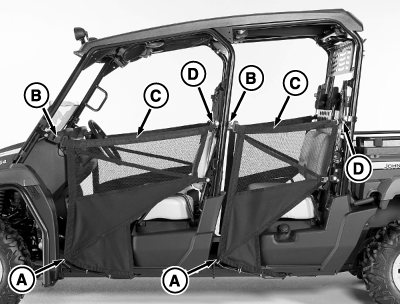

   XUV550 S4 model shown.

   Move bottom of net fully forward (A) and insert metal tab of net into buckle (B) until it latches.

---




3. After entering and exiting vehicle several times, check to be sure that the top strap (C) of the net is taut when net is latched. Tighten or loosen net at adjusting buckle (D) as needed.

Exiting vehicle:

1. Park vehicle safely.

2. Push button to release metal tab from buckle (A).

3. Move net rearward out of entry and exit area, and exit vehicle.
