Check Engine Oil Level

1. Park the vehicle safely.

2.

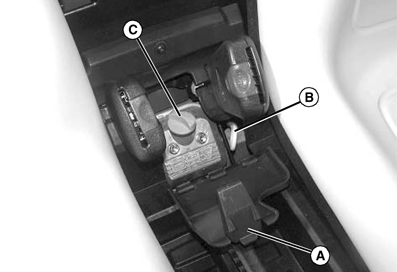

   MXAL47336-UN-16APR13

   Open access cover (A) between seats to gain access to oil fill cap.

---




3. Remove dipstick (B) and wipe it clean.

4. Install dipstick.

5. Remove dipstick.

6. Check oil level:

   • Oil level must be between fill marks on dipstick.
   • If oil level is low, remove cap (C) and add oil to bring oil level no higher than upper mark on dipstick. Install cap.
   • If oil level is above upper mark, drain to proper level. Determine cause of this condition and correct.



7. Install dipstick.

8. Lower the oil access cover between seats.
