Using Speed Limiter Key Switch

Speed limiter key switch is a 2-position switch used to limit maximum vehicle speed.

MXAL43180-UN-19MAR13

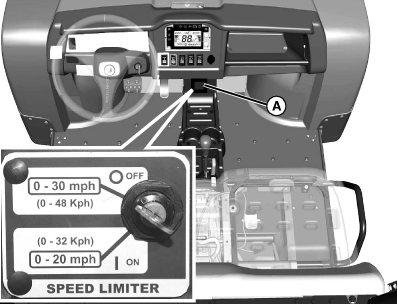

• Insert key to turn switch (A) to either position.
• Key can be left in or removed during operation.
• Maximum vehicle speed with switch turned clockwise to OFF position is 30 mph. Maximum vehicle speed with switch turned counterclockwise to ON position is 20 mph.
