Determining Vehicle Load Capacity

Find weights and capacities for your machine model in SPECIFICATIONS.

Overloading the vehicle or trailer can cause loss of control and could cause serious injury or death.

• Do not allow the Gross Vehicle Weight (GVW) to exceed the Gross Vehicle Weight Rating (GVWR) of the vehicle.
• Remove excess weight before operating vehicle.

MXAL44181-UN-10APR13

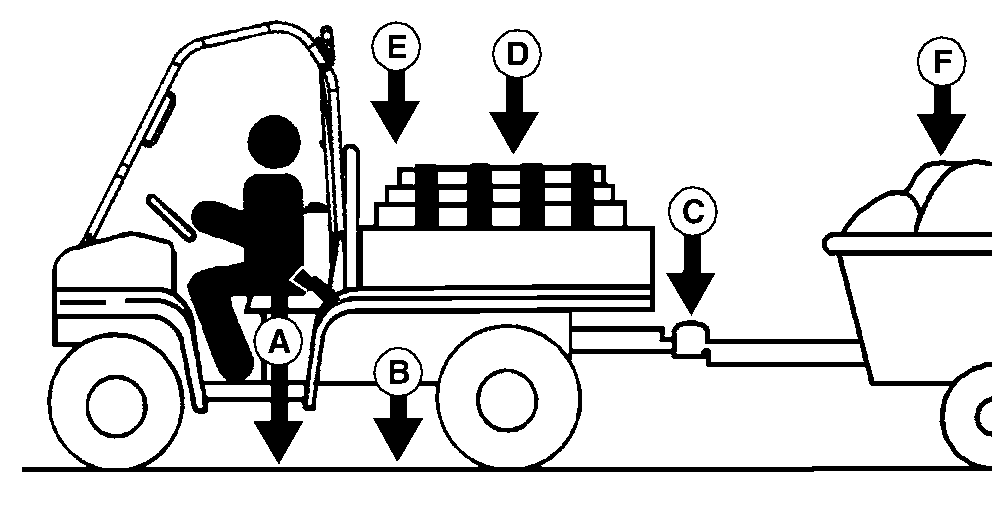

Factors in Determining Vehicle Load Capacity

Optional equipment or attachments that are not standard equipment, must be included when determining gross vehicle weight, and may reduce cargo box capacity.

• Gross Vehicle Weight (GVW) is the combination of the empty vehicle weight, payload, trailer tongue weight, and the weight of any other kits or attachments on the vehicle.

  GVW = A+B+C+D+E

• Gross Vehicle Weight Rating (GVWR) is the maximum permissible vehicle weight.
• Payload is the weight of all occupants plus the cargo box load.
• (A) Occupant load is the combined weight of all occupants (operator and one passenger).
• (B) Empty vehicle weight is the weight of the vehicle (full fluids) without occupant(s) or load or attachments.
• (C) Trailer tongue weight is the weight measured if the tongue of a loaded trailer was placed on a scale. The tongue weight should be approximately 10% of the total of the trailer weight and the weight of its load.
• (D) Cargo box load is the weight of the cargo in the cargo box. It may be less depending on the weight of the occupants, attachments and the trailer tongue weight.
• (E) Attachment and Option weight is the combined weight of all attachments and options that were not standard equipment. Your John Deere dealer can help you with this information.
• Vehicle Load capacity is the remaining amount of weight that the vehicle can haul in the cargo box and/or the additional weight from the operator, passenger, trailer tongue and attachments.
• Determine maximum vehicle load capacity:
  1. Calculate GVW = A+B+C+D+E
  2. Subtract the Gross Vehicle Weight (GVW) from the Gross Vehicle Weight Rating (GVWR).
  3. The weight difference between the two numbers is the vehicle load capacity.

     Vehicle Load Capacity=GVWR-GVW

  4. The Gross Vehicle Weight must be less than or equal to the Gross Vehicle Weight Rating. If GVW exceeds GVWR, remove excess weight from vehicle before operating.

Example:

The example below is for an XUV 825i with a 150 lb cargo load, a 200 lb operator, 220 lb of attachments and options (such as a heavy duty brush guard, OPS poly roof, cargo box power lift kit, etc); towing a trailer with 50 lb of tongue weight.

Key	Description
(A) Operator Weight:	200 lb
(B) XUV 825i:	1675 lb
(C) Trailer Tongue Weight:	50 lb
(D) Cargo Load:	150 lb
(E) Attachments and/or Options:	220 lb

GVW = 2295 lb (200 + 1675 + 50 + 150 + 220)

Vehicle Load Capacity = GVWR (3100) less GVW (2295)

Vehicle Load Capacity = 805 lb

The remaining vehicle load capacity of 805 lb can be used to haul additional passenger, cargo, trailer tongue and attachment weight.
