Cab Heater

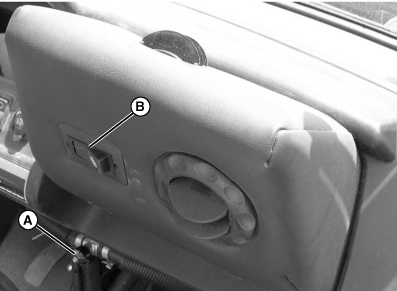

  1. MXAL44201
    MXAL44201-UN-10APR13

    Turn valve (A) to red arrow position to open for heat.


  2. Push right side of switch (B) to first position for low fan speed or second position for high fan speed.

  3. Push left side of switch fully down to turn fan off.

  4. Turn valve to blue arrow position to close valve.

MP47322,00F485D-19-20130403
