Occupant Protective Structure (OPS) Rear Screen

Adjusting Headrest Position

MXAL44202-UN-10APR13

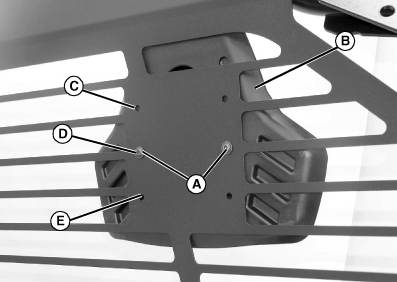

Headrest shown in center position.

1. Remove two screws (A) and move each headrest (B) to either top (C), center (D) or bottom (E) position. Secure with two screws.
