Servicing Cooling System

Follow all service procedures exactly. If not equipped to perform this work, see your John Deere dealer for service.

Prepare Vehicle

1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

2. Raise cargo box.

3. Tip seats forward.

4. Open hood.

5. Remove storage tray.

6. When the coolant system service is completed:

   • Install storage tray.
   • Close hood.
   • Tip seats back.
   • Lower cargo box.



Draining Cooling System

1. Make sure engine has cooled completely.

2. The radiator will be hot and can burn skin. Built-up pressure may cause explosive release of coolant when the radiator cap is removed:

   • Shut off the engine and allow to cool.
   • Do not remove the cap unless the radiator and the engine are cool enough to touch with bare hands.
   • Slowly loosen the cap to the first stop to release all pressure. Then remove the cap.

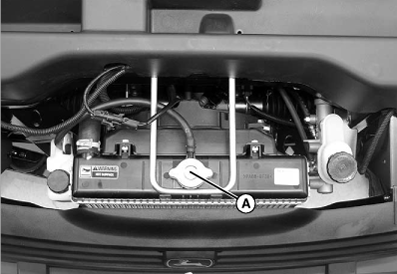

   MXAL44226-UN-10APR13

   Slowly open radiator cap (A) to the first stop to release all pressure.

---




3. Remove cap after all pressure is released.

4.

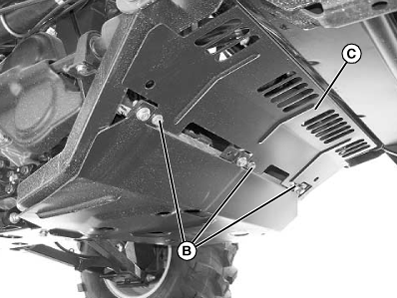

   MXAL44227-UN-10APR13

   Remove three bolts (B) and closeout panel (C) from machine.

---




5. Place a coolant drain pan under area where closeout panel was removed.

6.

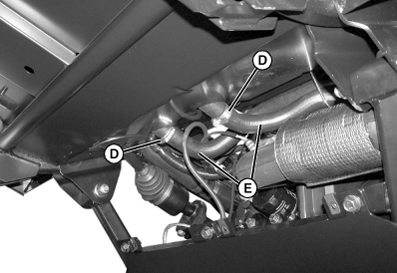

   MXAL44228-UN-10APR13

   View from under left (driver) side.

   Loosen hose clamps (D), and disconnect radiator hoses (E) from intermediate tubes.

---




7. Route radiator hoses over the drain pan and allow coolant to drain into drain pan.

8. Raise front of vehicle to ensure complete drainage of coolant.

9. After all coolant has drained, lower front of vehicle and connect radiator hoses (E).

10.

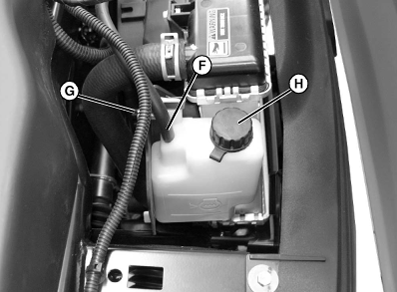

    MXAL44229-UN-10APR13

    Remove overflow hose (F) from recovery tank.

---




11. Remove the screw (G) and lift recovery tank out of machine.

12. Remove cap (H) and empty recovery tank into drain pan.

13. Check condition of all hoses. Replace as needed. Check all hose clamps and tighten as needed.

14. Install recovery tank in machine and secure with screw (G).

15. Install overflow hose properly to ensure proper function of the cooling system. Position hose slightly above bottom of reservoir. Do not allow hose to contact bottom of reservoir or bend upwards out of the coolant.

    Install overflow hose (F) and cap (H).

16. Install closeout panel with three bolts.

17. Fill and bleed cooling system.

Filling and Bleeding Cooling System

Using incorrect coolant mixture can damage the radiator:

• Do not operate engine without coolant or with plain water.
• Do not exceed a 50% antifreeze mixture for the coolant.
• Use antifreeze approved for use in aluminum engines.
• Do not pour coolant or water into radiator when engine is hot.
• Do not add Stop Leak or other additives.

John Deere COOL-GARD™ coolant is recommended when adding coolant to the cooling system. Follow the directions on the container for correct mixture ratio.

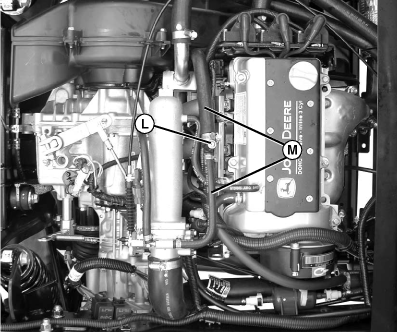

MXAL44230-UN-10APR13

1. Loosen bleed valve screw (L) located in T-fitting connecting hoses (M).

2. Remove radiator cap and add recommended coolant mixture to radiator until coolant runs out of bleed port.

3. Tighten bleed valve screw.

4. Add additional coolant mixture to radiator until coolant runs out of overflow port and into the recovery tank.

5. Install radiator cap.

6. Position hose slightly above bottom of recovery tank. Do not allow hose to contact bottom of recovery tank or bend upwards out of the coolant.

   Remove recovery tank cap and add coolant mixture to recovery tank until it is approximately half full.

7. Install recovery tank cap.

8. If coolant temperature indicator comes on while engine is running, stop engine and add more coolant mixture to radiator.

   Start and run engine at medium speed until upper and lower radiator hoses have become warm (10 - 15 minutes), indicating thermostat has opened and coolant is circulating.

9. Allow engine to cool.

10. Loosen bleed valve screw and allow air to bubble out until air bubbles are no longer visible at bleed port. Tighten bleed valve screw completely.

11. Remove radiator cap and add recommended coolant mixture to radiator until coolant runs out of overflow port and into the recovery tank.

12. Install radiator cap.

13. Run engine until cooling fan starts, indicating the engine and coolant has reached operating temperature.

14. Stop engine and remove key.

15. Allow engine to cool and suction back any excess coolant from overflow recovery tank. Fill recovery tank as needed to lower line.

Flushing Cooling System

1. Drain cooling system.

2. Prepare a cooling system flushing solution using clean water and John Deere Cooling System Cleaner, John Deere Cooling System Quick Flush, or an equivalent.

3. Fill radiator completely with flushing solution. Install and tighten radiator cap.

4. Start and run engine until it reaches operating temperature.

5. Stop engine.

6. The radiator will be hot and can burn skin. Built-up pressure may cause explosive release of coolant when the radiator cap is removed:

   • Shut off the engine and allow to cool.
   • Do not remove the cap unless the radiator and the engine are cool enough to touch with bare hands.
   • Slowly loosen the cap to the first stop to release all pressure. Then remove the cap.



   Turn radiator cap slowly to the stop to release system pressure. Remove radiator cap.

7. Drain cooling system immediately into a container before.

   • Disconnect radiator hoses from engine.



8. After all solution has drained, connect radiator hoses.

9. Remove and clean recovery tank.

10. Install the recovery tank.

11. Fill cooling system with recommended coolant mixture.
