Checking Radiator Hoses and Clamps

1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

2. Raise cargo box.

3. Open hood.

4. Remove storage tray.

5.
   MXAL44231-UN-10APR13

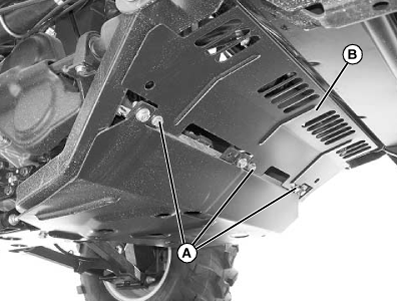

   Remove three bolts (A) and closeout panel (B) from machine.

---




6. Visually inspect hoses for cracks and wear. Squeeze hoses to check for deterioration. Hoses should not be hard and brittle, nor soft or swollen.


   MXAL44232-UN-10APR13


   MXAL44233-UN-10APR13

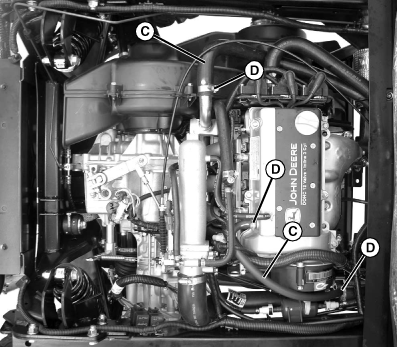

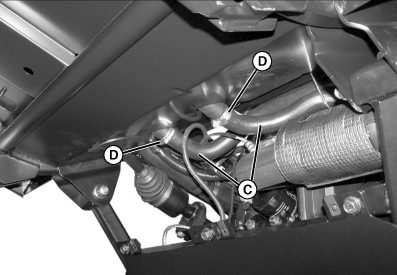

   Check radiator hoses (C) between intermediate tubes and engine for damage or cracking. Replace if necessary.

---




7. Check hose clamps (D) and tighten or replace as needed.

8.
   MXAL44234-UN-10APR13

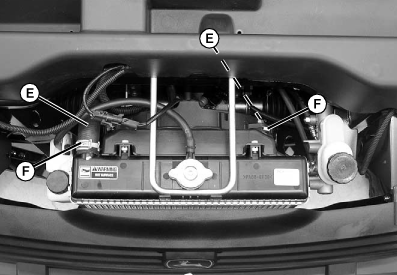

   Check radiator hose (E) between intermediate tubes and radiator for damage or cracking. Replace if necessary.

---




9. Check hose clamps (F) and tighten or replace as needed.

10. Install storage tray.

11. Install closeout panel with three bolts.

12. Close hood.

13. Lower cargo box.
