Checking 4WD Front Differential Oil Level

1. Park machine safely. (See Parking Safely in the SAFETY section.) Allow machine to cool down for at least one hour.

2. Dirt and debris in oil may cause damage to the 4WD differential. Clean area around opening before removing plug.


   MXAL44247-UN-10APR13

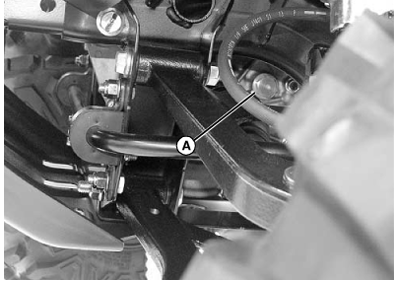

   Fill plug under left front side.

   Remove fill plug (A) located on left side of 4WD front differential.

---




3. Oil should be level with the bottom of the fill port. If oil level is low:

   1. Add oil through fill port until level is correct.

   2. Install and tighten fill plug to specification.

      Fill Plug	Torque	11 - 40 N·m (8 - 30 lb-ft)
