Servicing Drive Belt


Inspecting Drive Belt

Rotating parts can catch fingers, loose clothing, or long hair. Wait for engine and all moving parts to stop before leaving operator’s station to adjust or service machine.

  1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

  2. Raise and secure cargo box.

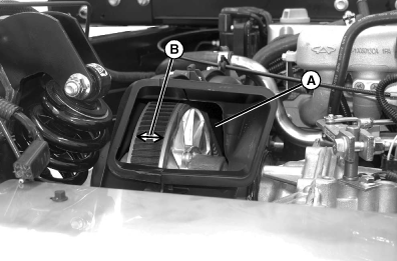

  3. Drive belt can be inspected through enclosure exhaust port (A) with out removing clutch enclosure cover.

    MXAL44253
    MXAL44253-UN-10APR13

    Measure the top surface of the belt width at (B). Replace belt if dimension is less than 29 mm (1.1 in.).


  4. Check for debris inside enclosure exhaust port and clean if needed.


Removing Drive Belt

  1. Rotating parts can catch fingers, loose clothing, or long hair. Wait for engine and all moving parts to stop before leaving operator’s station to adjust or service machine.

    Park the vehicle safely. (See Parking Safely in the SAFETY section.)

  2. Raise and secure cargo box.

  3. The machine can fall or slip from an unsafe lifting device or supports.

    • Use a safe lifting device rated for the load to be lifted.
    • Lower machine onto jack stands or other stable supports and block wheels before servicing.

    Lift machine and secure so tires are off the ground and suspension hangs freely.

  4. MXAL44254
    MXAL44254-UN-10APR13

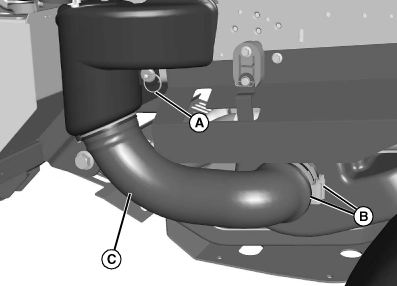

    Remove ring (A), loosen two clamps (B) and remove air intake hose (C).


  5. MXAL44255
    MXAL44255-UN-10APR13

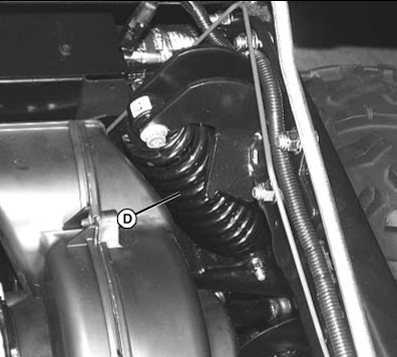

    Remove left rear shock (D).


  6. MXAL44256
    MXAL44256-UN-10APR13

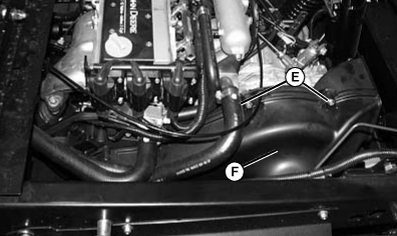

    Remove eleven bolts around (E) clutch enclosure cover (F). Remove clutch enclosure cover.


  7. MXAL44257
    MXAL44257-UN-10APR13

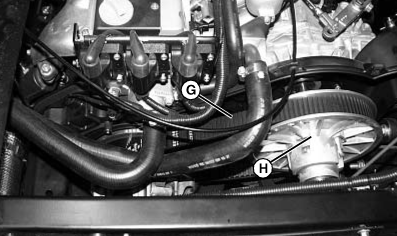

    Lift up on drive belt (G) to make slack.


  8. Start drive belt over edge of driven clutch (H) and turn clockwise until drive belt is removed.

  9. MXAL44258
    MXAL44258-UN-10APR13

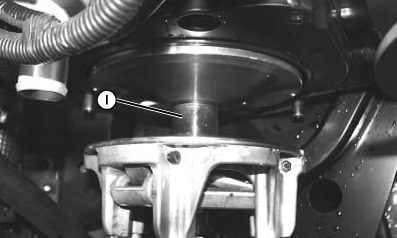

    Spin idler sleeve bearing (I). Confirm bearing rotates smoothly. If not, contact your John Deere dealer for possible bearing replacement.



Replacing Drive Belt

Make sure arrows on drive belt face towards the front of machine.

  1. MXAL44259
    MXAL44259-UN-10APR13

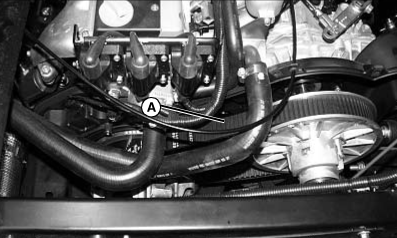

    Loop belt (A) over drive clutch and around driven clutch, starting at bottom and slide belt into driven clutch while turning.


  2. MXAL44260
    MXAL44260-UN-10APR13

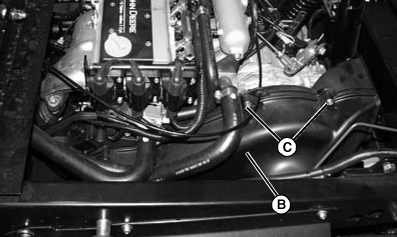

    Install clutch enclosure cover (B) and eleven bolts (C).


  3. Install left rear shock.

  4. MXAL44261
    MXAL44261-UN-10APR13

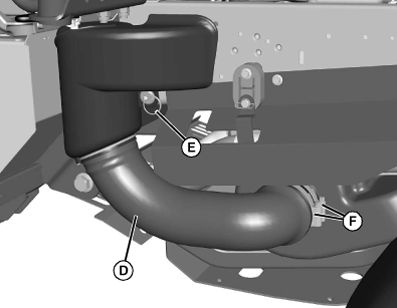

    Install air intake hose (D), retaining ring (E), tighten two clamps (F).
