Cleaning Primary Drive Clutch and Enclosure

Never lubricate any part of the primary drive clutch.

  1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

  2. Raise and secure cargo box.

  3. MXAL44262
    MXAL44262-UN-10APR13

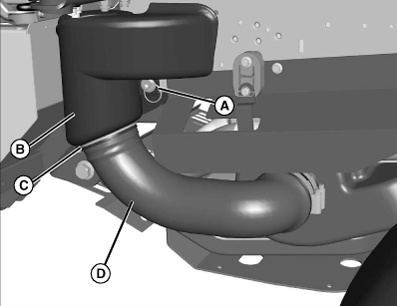

    On machine left side, remove retaining ring (A), and remove top cover (B) along with rubber seal (C) from air intake hose (D).


  4. MXAL44263
    MXAL44263-UN-10APR13

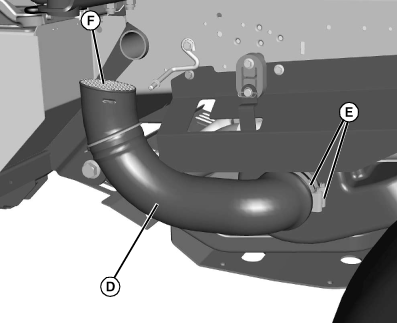

    Loosen hose clamps (E) and pull air intake hose (D) off of outer clutch cover.


  5. Clean screen (F) on top of air intake hose.

  6. MXAL44264
    MXAL44264-UN-10APR13

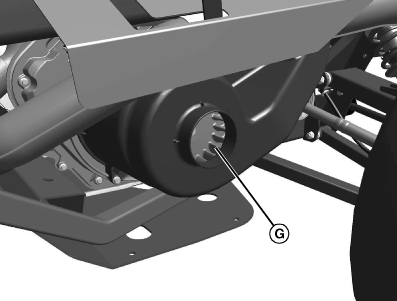

    Through access hole (G), use compressed air to blow dust and debris out of clutch fan area.


  7. MXAL44265
    MXAL44265-UN-10APR13

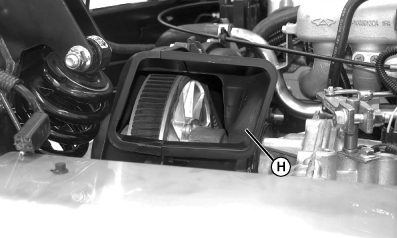

    Check exhaust port (H) for debris.


  8. MXAL44266
    MXAL44266-UN-10APR13

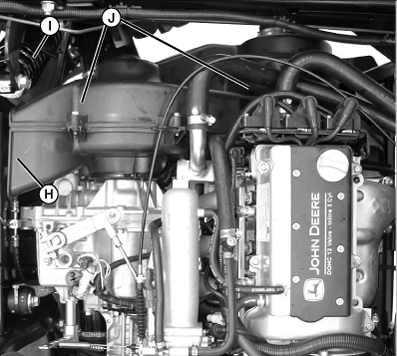

    If debris is found inside exhaust port (H), remove shock (I), eleven bolts and outer clutch enclosure cover (J).


  9. MXAL44267
    MXAL44267-UN-10APR13

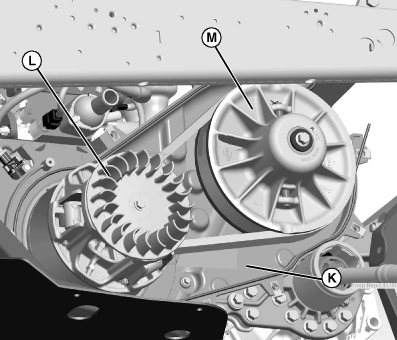

    Clean inside clutch enclosure cover, clutch enclosure base (K), and around drive (L) and driven clutch (M) assemblies.


  10. Install cover.

  11. Install shock.

  12. Install air intake hose.

  13. Lower the cargo box.

MP47322,00F488A-19-20130403
