Checking Park Brake Fluid

1. Park Machine safely on a level surface. (See “Park Machine Safely” in the SAFETY section.)

2. Raise and secure cargo box.

3.

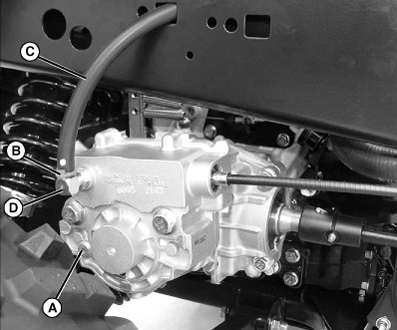

   MXAL44271-UN-10APR13

   View from right rear side of vehicle.

   Remove hex socket plug (A) to check lubricant level in park brake housing. Fluid level should be at bottom of plug opening.

---




4. If not at proper level, loosen clamp (B) and remove hose (C) from fitting (D). Remove fitting (D). Add recommended fluid until at bottom of plug (A) opening. Install plug (A).

5. Install fitting (D), and hose (C) with clamp (B).
