Replacing Headlight Bulbs

  1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

  2. Locate headlight housing under the front fender.

  3. Halogen light bulb contains gas under pressure. The bulb may shatter if the glass is scratched or dropped. Wear eye protection and handle bulb with care when replacing.

    Do not touch glass portion of new bulb with bare skin. Contact with oils or dirt will reduce bulb life. Handle bulb by the base or with a clean cloth or gloves.

    MXT008459
    MXT008459-UN-02SEP13

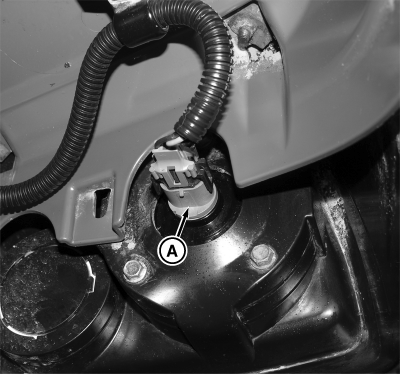

    Rotate bulb socket (A) 1/8 of a turn counterclockwise and remove socket from housing.


  4. MXT008460
    MXT008460-UN-01SEP13

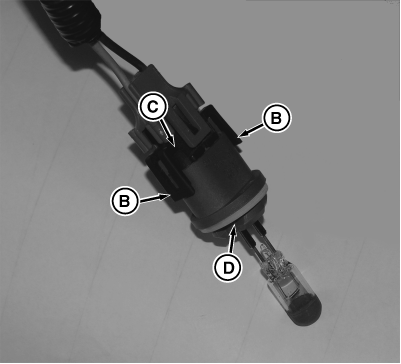

    Pull outward on tabs (B), and disconnect wire connector (C) from socket (D). Discard the bulb/socket assembly.


  5. Connect wiring connector to new bulb/socket assembly. Install the assembly into housing and rotate 1/8 turn to lock in place.

  6. Test head lamp function.

MP47322,00F4896-19-20130901
