Checking and Replacing Fuses

The electrical system may be damaged if incorrect replacement fuses are used. Replace the bad fuse with a fuse of the same amp rating.

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Raise hood and remove storage tray.

3.
   MXAL44279-UN-10APR13

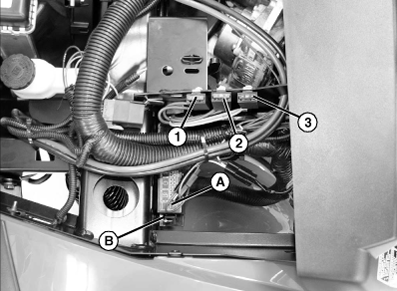

   Fuse identification:

   Position	Circuit	Fuse Size
   1	Fan (orange wire)	30 amp
   2	Accessory	40 amp
   3	Accessory	40 amp

---




4. Pull fuse from fuses installed onto frame area, as shown.

5. Check visually for broken filament in fuse.

6. Push new fuse of correct amp rating into proper position in fuse block.

7. Remove fuse relay block cover (A) to gain access to relay block (B).

8.
   MXAL44280-UN-10APR13

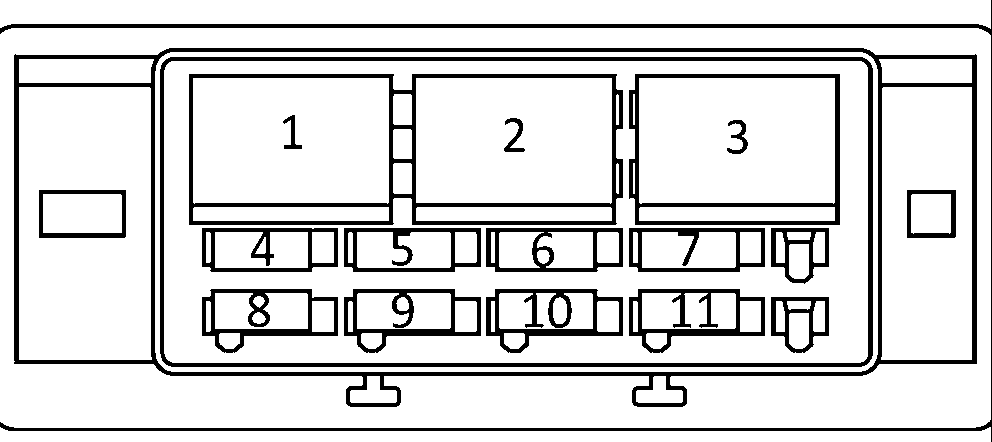

   Fuse identification on relay block (B):

   Circuit	Fuse Size	Part #
   (1) Fuel Pump Relay	N/A	N/A
   (2) Start Relay	N/A	N/A
   (3) Fan Relay	N/A	N/A
   (4) Fuel Pump	10 amp	57M7689
   (5) Front Dash Power Port	10 amp	57M7689
   (6) Center Power Port	5 amp	57M7688
   (7) Instrument Cluster	5 amp	57M7688
   (8) Start Relay	20 amp	57M7691
   (9) Key Switch	20 amp	57M7691
   (10)ECU	3 amp	57M8743
   (11) Headlights	10 amp	57M7689

---




9. Check visually for broken filament in fuse.

10. Push new fuse of correct amp rating into proper position in fuse block.

11. Install storage tray and lower hood.
