Lifting Machine

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. The machine can fall or slip from an unsafe lifting device or supports.

   • Use a safe lifting device rated for the load to be lifted.
   • Lower machine onto jack stands or other stable supports and block wheels before servicing.



   Be certain to include bolt heads (A) and embossed area (B) inside jack cup to prevent slipping.

   Remove all attachments prior to lifting machine.

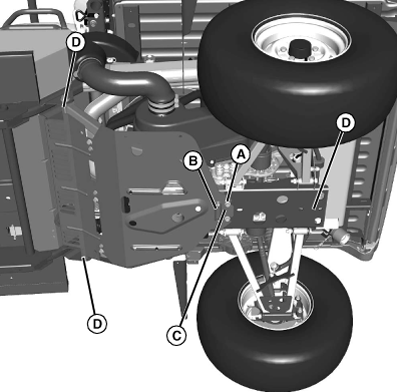

   MXAL44287-UN-10APR13

   Your machine model may not be shown, but jack locations are as shown.

   Safety lift rear of machine frame point (C).

---




3. Place jack stands or other stable supports under three frame locations (D).

4. If only lifting rear of machine, block front wheels remaining on ground to avoid movement of machine.

5.

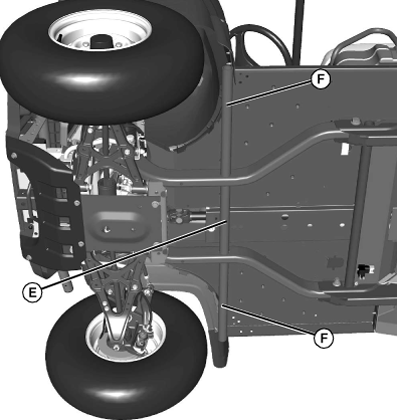

   MXAL44288-UN-10APR13

   Your machine model may not be shown, but jack locations are as shown.

   Safely lift front of machine at machine frame point (E) or locations (F). Place jack stands or other stable supports under two machine frame locations (F)

---




6. If only lifting front of machine, block rear wheels remaining on ground to avoid movement of machine.

7. To lower machine, lift front and/or rear of machine, and remove jack stands or supports. Lower machine.
