Replacing Cargo Box Tailgate Bushings

MXAL44295
MXAL44295-UN-10APR13

  1. Remove the cargo box tailgate (See Removing the Tailgate in OPERATING).

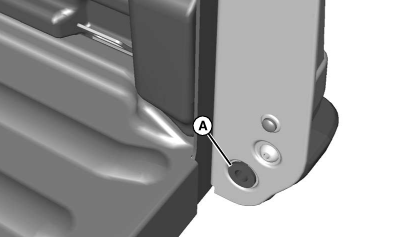

  2. Remove snapfit bushing (A) from both sides of cargo box.

  3. Replace bushings and reinstall the tailgate.

MP47322,00F48A2-19-20130403
