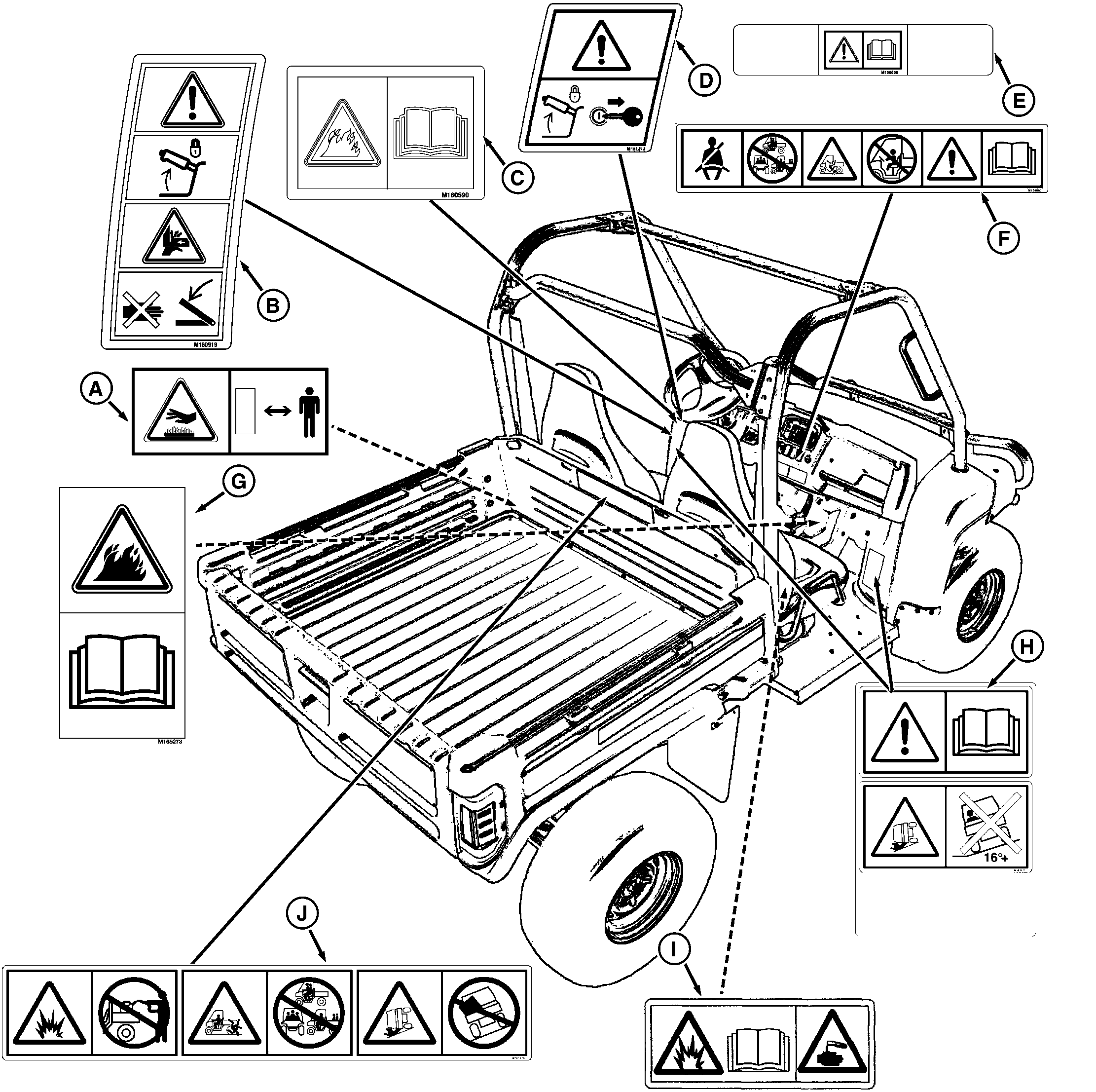

Pictorial Safety Label Location

MXT008458-UN-01SEP13

A - Hot Surfaces - GX21121

B - Help Prevent Injury When Dumping Loads - M160919

C - Prevent Equipment Fires - M160590

D - Park Machine Safely - M161018

E - Read Operator’s Manual - M160658 (On Optional Front Rack)

F - Driver and Passenger Safety - M159667

G - Prevent Equipment Fires - M165273

H - Read Operator’s Manual, Avoid Tipping - M161511

I - Avoid Injury From Battery Gases and Acid - M133159

J - Avoid Injury From Explosion, Riders Can Fall Off and Be Killed, Rollover or Falling Off May Cause Death - M161570
