Changing Engine Oil and Filter

1. IMPORTANT: Change the oil more often if the vehicle is used in extreme conditions:

   • Extremely dusty conditions.
   • Frequent slow or low-speed operation.
   • Frequent short trips.



   Run engine to warm the oil.

2. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

3. Raise and secure cargo box.

4. Clean any debris around drain plug.

5. Place drain pan under engine drain plug.

6.

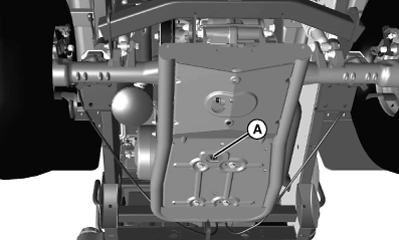

   MXAL47602-UN-16MAY13

   Remove drain plug (A) on the rear side of engine and drain oil into oil drain pan. Allow oil to drain completely.

---




7.

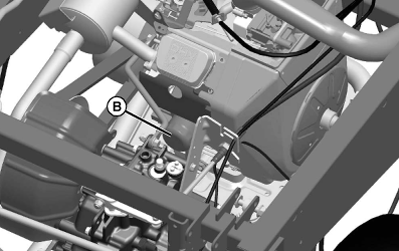

   MXAL47603-UN-16MAY13

   Remove and discard oil filter (B) on rear of engine. Wipe off filter base on engine.

---




8. Put a light coat of clean engine oil on gasket of new oil filter.

9. Install new filter until rubber gasket contacts filter base. Tighten filter an additional one-half turn.

10. Install drain plug, and tighten to specifications.

    Item	Measurement	Specification
    Engine Oil Drain Plug	Torque	6.9 N·m (61 lb-in.)

11.

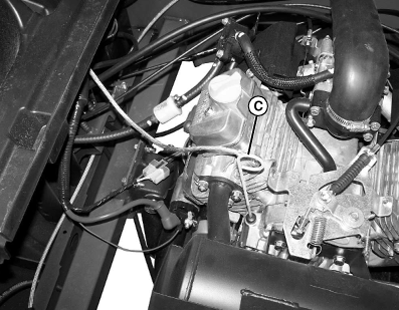

    MXAL47604-UN-16MAY13

    Remove dipstick (C) from filler tube, and add engine oil.

---




12. IMPORTANT: Do not overfill crankcase with oil. Oil capacities given are with engine and crankcase completely dry. Some oil will remain in engine after draining.

    Add recommended oil no higher than upper mark on dipstick. Do not overfill.

13. Install dipstick.

14. Start and run engine at idle to check for leaks. Stop engine. Fix any leaks before operating.

15. Check oil level, add oil if necessary.

16. Lower the cargo box.
