Checking Air Intake, Hoses and Clamps

1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

2. Raise and secure cargo box.

3.
   MXAL47607-UN-16MAY13

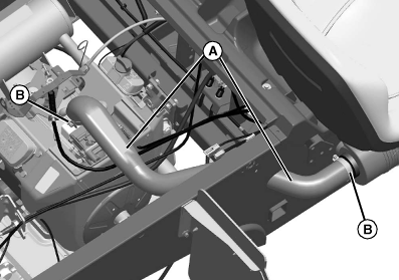

   Check intake hose (A) for damage or cracking. Replace if necessary.

---




4. Check and tighten air intake hose clamps (B) as needed.

5. Raise passenger seat, and remove service access panel.

6.
   MXAL47608-UN-16MAY13

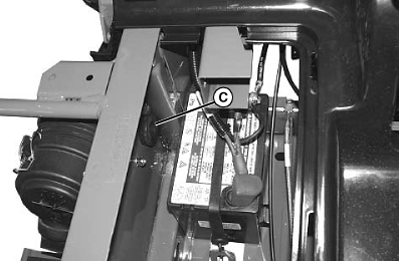

   Check to make sure air intake restrictor (C) is clear of obstructions and secured in position.

---




7. Lower the cargo box, install service access panel, and lower passenger seat.
