Adjusting Motion Control Levers

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2.
   MXAL42795-UN-09APR13

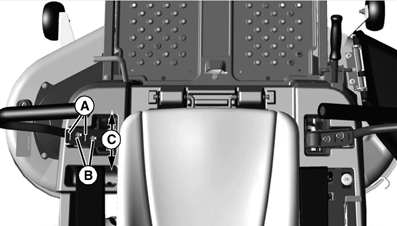

   To adjust motion control lever height, remove two bolts and nuts and raise or lower each control lever to your comfort level.
   • For highest lever position, use holes (A).
   • For lowest lever position, use holes (B).



---




3. You can also adjust motion control levers slightly forward or rearward (C) within slotted holes.
