Transporting Machine on Trailer

NOTE: Trailer capacity must exceed combined machine weight and attachment weight. (See Specifications section in operator’s manual).

Be sure trailer has all the necessary lights and signs required by law.

CAUTION: Use extra care when loading or unloading the machine onto a trailer or truck. Machine wheels can go off the ramp or trailer, causing the machine to tip over.

  • To load, back slowly and in a straight line. Keep wheels away from drop-offs and edges.
  • Do not use two separate loading ramps. Use a full width loading ramp at least 30 cm (12 in.) wider than machine to keep caster wheels from going off the ramp edge.
  • Use a trailer with sides.

  1. Park trailer on level surface.

  2. Raise mower deck before driving machine onto trailer.

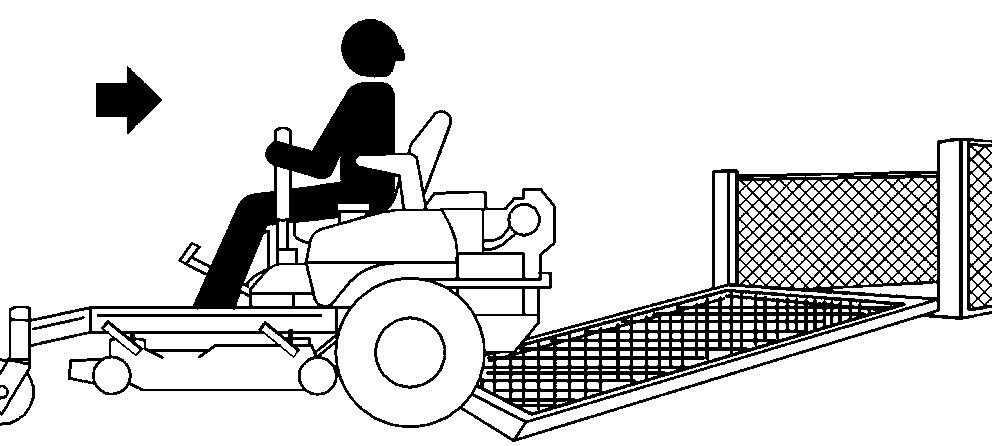

  3. MXAL42817
    MXAL42817-UN-09APR13

    Back machine onto heavy-duty trailer with full-width ramp.


  4. Lower mower deck completely.

  5. Lock park brake.

  6. MXAL42818
    MXAL42818-UN-09APR13

    Fasten front of machine at both sides of the frame at point (A) to trailer with heavy-duty straps, chains, or cables. Straps must be directed down, forward and outward from machine.


  7. Turn off machine and remove key.

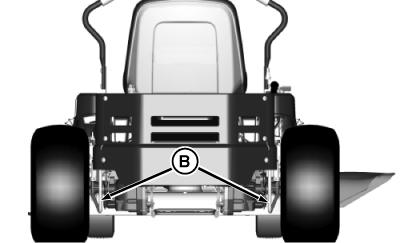

  8. MXT005334
    MXT005334-UN-22MAY13

    Fasten rear of machine at both sides of frame at points (B) to trailer with heavy-duty straps, chains, or cables. Straps must be directed down, rearward and outward from machine.

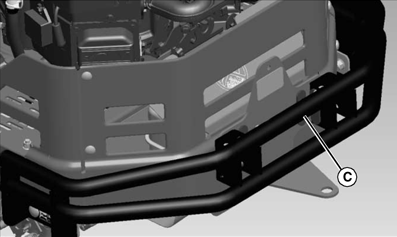

    MXAL42820
    MXAL42820-UN-09APR13

    If an attachment bar is on the unit, secure the vehicle using the center of the top bar (C).

MP47322,00F4648-19-20130522
