Lubricating Mower Deck Spindles

NOTE: Removal of belt shields is not necessary to lubricate the spindles.

1. Remove floor mat (if equipped) and mower deck foot plate.

2. Lubricate the mower deck spindles, as indicated.

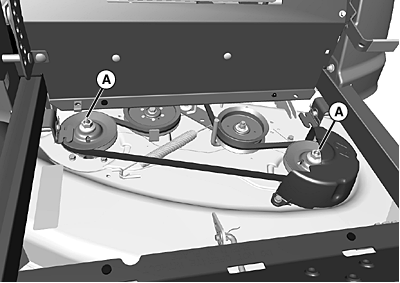

42C Mower Deck

MXAL42821-UN-25MAR13

• Lubricate two mower deck spindle grease fittings (A) with two pumps of grease at specified interval.

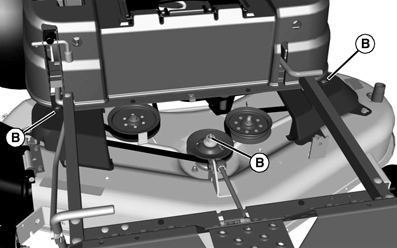

48TD Mower Decks

MXAL42822-UN-09APR13

• Lubricate three mower deck spindle grease fittings (B) with two pumps of grease at specified interval.
