Lubricating Front Lift Arm

MXAL42823-UN-09APR13

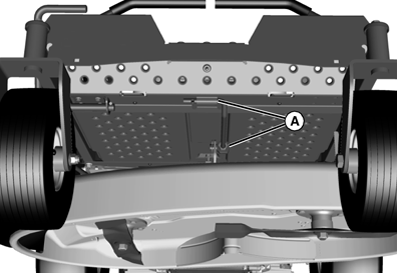

Model Z235 (42C) shown.

Lubricate the front lift arm at the points (A) where it pivots in the mower deck bracket as needed to prevent or minimize squeaking during operation.
